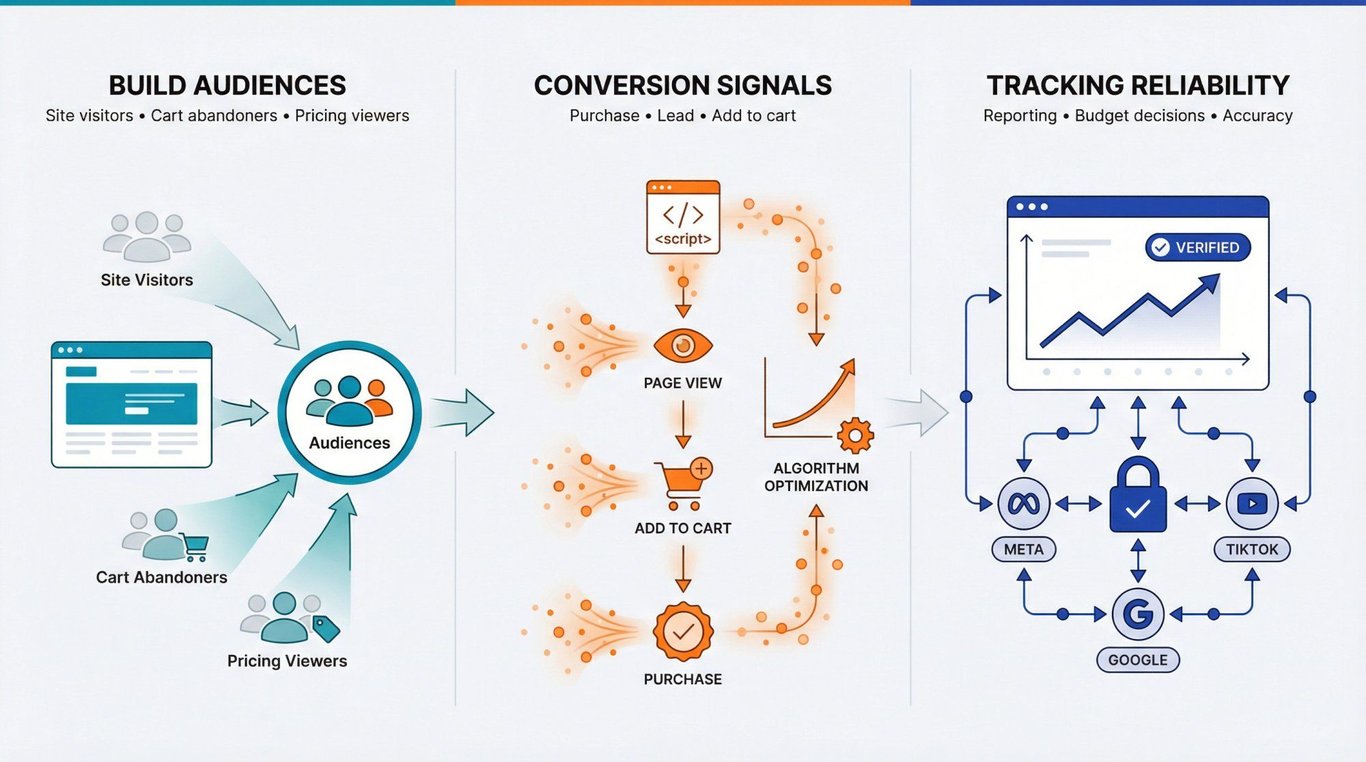

Your site loads a script (the "pixel tag"). That script records events like page view, add to cart, purchase. The ad platform tries to match those events back to a person it knows through logged-in users, device identifiers, click IDs, hashed identifiers, or first-party cookies.

Once matched, you can create a retargeting audience (people who did event X), exclude audiences (buyers don't see acquisition ads), and optimize delivery for people likely to convert.

The "pixel" part is easy. The hard part is events, parameters, deduplication, consent, and QA.

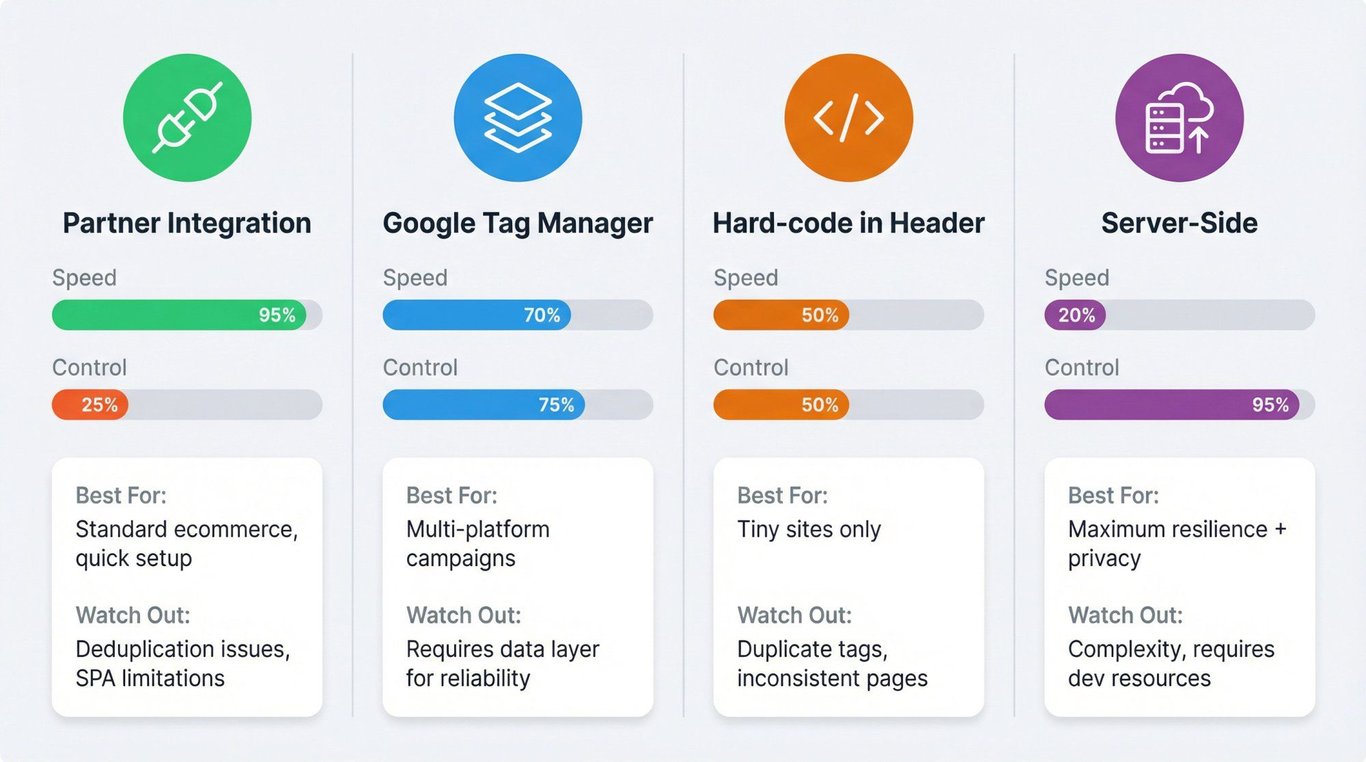

4 Ways to Install a Retargeting Pixel

Method	Speed	Control	Best For	Watch Out For
Partner Integration	Fastest	Lowest	Standard ecommerce, quick setup	Deduplication issues, SPA limitations
Google Tag Manager	Fast	High	Multi-platform campaigns	Requires data layer for reliability
Hard-code in Header	Medium	Medium	Tiny sites only	Duplicate tags, inconsistent pages
Server-Side	Slowest	Highest	Maximum resilience + privacy	Complexity, requires dev resources

Option A: Partner Integration (fastest, least control)

Shopify, WooCommerce, WordPress plugins, or "connect to platform" flows.

Good when:

→ You want speed

→ Your site is standard ecommerce or lead gen

→ You're okay with "mostly correct"

Bad when:

→ You need clean deduplication with server-side events

→ You have a single-page app, multi-domain checkout, or custom funnel

TikTok explicitly supports partner integration or manual setup, and even calls out partners like Shopify and Google Tag Manager.

Option B: Google Tag Manager (best default)

One container to rule them all. Easier updates, fewer dev deploys, cleaner governance.

Good when:

→ You run multiple platforms (Meta, TikTok, Google)

→ You want versioning, preview mode, rollback

Bad when:

→ Your site has no data layer and nobody will build one (you'll end up with fragile click-triggers)

Option C: Hard-code in the site header

Fine for tiny sites, risky for serious teams (duplicates, inconsistent pages, bad deploy discipline).

TikTok's own troubleshooting guidance literally says: place the pixel code as early as possible, ideally between <head></head>.

Option D: Server-Side

This isn't "instead of" the pixel. It's "pixel plus server" if you want resilience.

TikTok recommends using both pixel and Events API together (with dedup and consistent events/parameters) to improve performance and measurement.

How to Set Up Your Pixel (Works for Meta, TikTok, Google)

Works for Meta, TikTok, Google.

Step 0: Decide Your "Money Events" (don't skip this)

Retargeting without events is just "everyone who visited." That's weak.

Pick 1-3 primary conversion events:

Ecommerce: Purchase (primary), Initiate Checkout, Add to Cart

Lead gen: Lead (primary), Complete Registration, maybe Schedule

Then map them across platforms (names differ, intent is the same).

TikTok's help center is very clear: you should set up events across the user journey and include recommended parameters like currency, value, and content_ids for commerce.

Step 1: Install Base Tag on Every Page

Home page is not enough.

Product pages only is not enough.

Your checkout domain matters.

For Google Ads tagging, the help center explicitly states the Google tag must be added into every page, while event snippets are only for the pages you track for dynamic remarketing.

Step 2: Set Up Events + Parameters

Events without parameters are like invoices without amounts.

Minimum viable for ecommerce:

Event	Required Parameters
View Content	`content_ids`, `content_type`
Add to Cart	`content_ids`, `quantity`, `value`, `currency`
Purchase	`content_ids`, `value`, `currency`, order ID

TikTok lists standard events and recommended parameters, and warns to avoid sending sensitive data.

Step 3: Verify (browser-side), then verify again (platform-side)

You need both:

① A browser debugger (extension)

② The platform's "test events" or diagnostics views

TikTok gives three verification methods: Pixel Helper extension, test events in Events Manager, and diagnostics tab.

Step 4: Create Retargeting Audiences (and exclusions)

Once events flow, build audiences like:

• All visitors 30d

• Viewed product 14d

• Add to cart 7d, exclude purchase 30d

• Initiated checkout 7d, exclude purchase 30d

The platform UI changes, but the logic doesn't.

Step 5: Harden for Privacy/Consent Reality

If you ignore consent, you'll wonder why your audiences are tiny and your ROAS looks "random."

Google's consent mode is designed to adjust tag behavior based on consent state and can use "pings" for modeling when tags meet thresholds.

Platform-by-Platform Setup Guide

1) TikTok: Pixel + Events API (recommended combo)

A) Create the Pixel (Events Manager)

TikTok's official flow (as of last updated: November 2025):

① Log in → Tools

② Events Manager

③ Connect Data Source

④ Select Web

⑤ Input your URL

⑥ Choose partner integration or manual setup

B) Install Base Code (manual or partner)

If you go manual, install the base code and place it early in the page (head). Pixel Helper flags "pixel code not installed in header" and recommends placing it between <head></head>.

C) Set Up Events (no-code or code)

You have two practical choices:

Event Builder (no-code): It analyzes your site's buttons/elements and suggests standard events plus parameters (last updated: March 2025). (TikTok For Business)

Manual code: Best if you already have a data layer or dev support.

TikTok standard events include Add to Cart, Initiate Checkout, Purchase, View Content, and more (last updated: September 2025).

D) Verify (don't guess)

TikTok's test events flow (last updated: February 2025) uses a QR code and mobile flow:

→ Events Manager → Manage Pixel → Test Events

→ Enter URL → Scan QR in TikTok app → Perform actions → Watch events appear in real time

Then use Web Diagnostics (last updated: July 2025) to spot missing parameters/content IDs and resolve issues.

E) Add Events API (server-side) for resilience

TikTok Events API (last updated: April 2025) is a server-to-server connection and is explicitly recommended alongside pixel for web conversions. It's also a prerequisite (pixel or Events API) for the Web Conversions objective.

For better match rates, TikTok recommends "match keys" like:

• Click ID

• Hashed email/phone (advanced matching)

• External IDs

• IP and user agent

• First-party cookie values

2) Google Ads: Remarketing Tag (Google Tag) + Optional GA4 Audiences

Google gives you two "standard" paths:

Google Ads remarketing tag (basic remarketing lists).

Google Analytics remarketing (richer audiences if advertising features are enabled and accounts linked).

The tag platform docs spell this out and show both are supported via Google tag or Tag Manager (last updated: 2024-11-14).

A) Install the Google Tag (gtag.js) or use GTM

For standard remarketing:

If you already have a Google tag with an ID prefix "G" or "AW," you often don't need to change the base install (you just need the right config). (Google for Developers)

Otherwise, you add the tag in the <head>.

Google's help center reminds: Google tag goes on every page.

Example snippet:


<!-- Google tag (gtag.js) -->
<script async src="https://www.googletagmanager.com/gtag/js?id=TAG_ID"></script>
<script>
  window.dataLayer = window.dataLayer || [];
  function gtag(){dataLayer.push(arguments);}
  gtag('js', new Date());
  gtag('config','TAG_ID');
</script>

The developer guide shows the same basic structure and explains gtag.js vs GTM setup.

B) (Important) Enable Conversion Linker in GTM

Google's remarketing setup via GTM explicitly calls out enabling a conversion linker for best browser compatibility. (Google for Developers)

C) Dynamic Remarketing Requires Event Parameters

Standard remarketing can be "all visitors." Dynamic remarketing needs parameters tied to products/services plus a feed.

Google Ads help covers dynamic remarketing events/parameters separately.

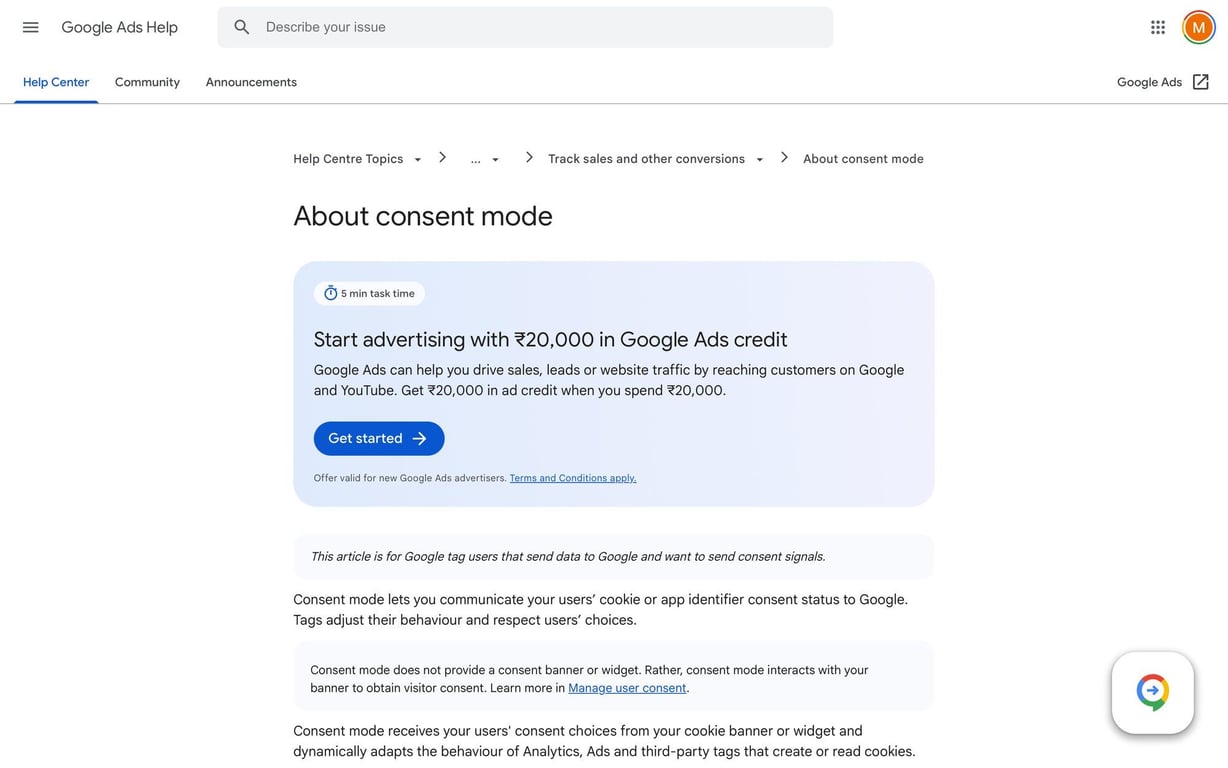

D) Consent Mode (2025 reality)

If you operate in regions where consent matters (and honestly, it matters almost everywhere now), consent mode is how Google tags behave based on user consent.

Google's consent mode doc explains:

• Tags send different kinds of "pings" (ad pings, key event pings, analytics pings)

• These include consent state and other coarse info

• Google may model metrics when thresholds are met

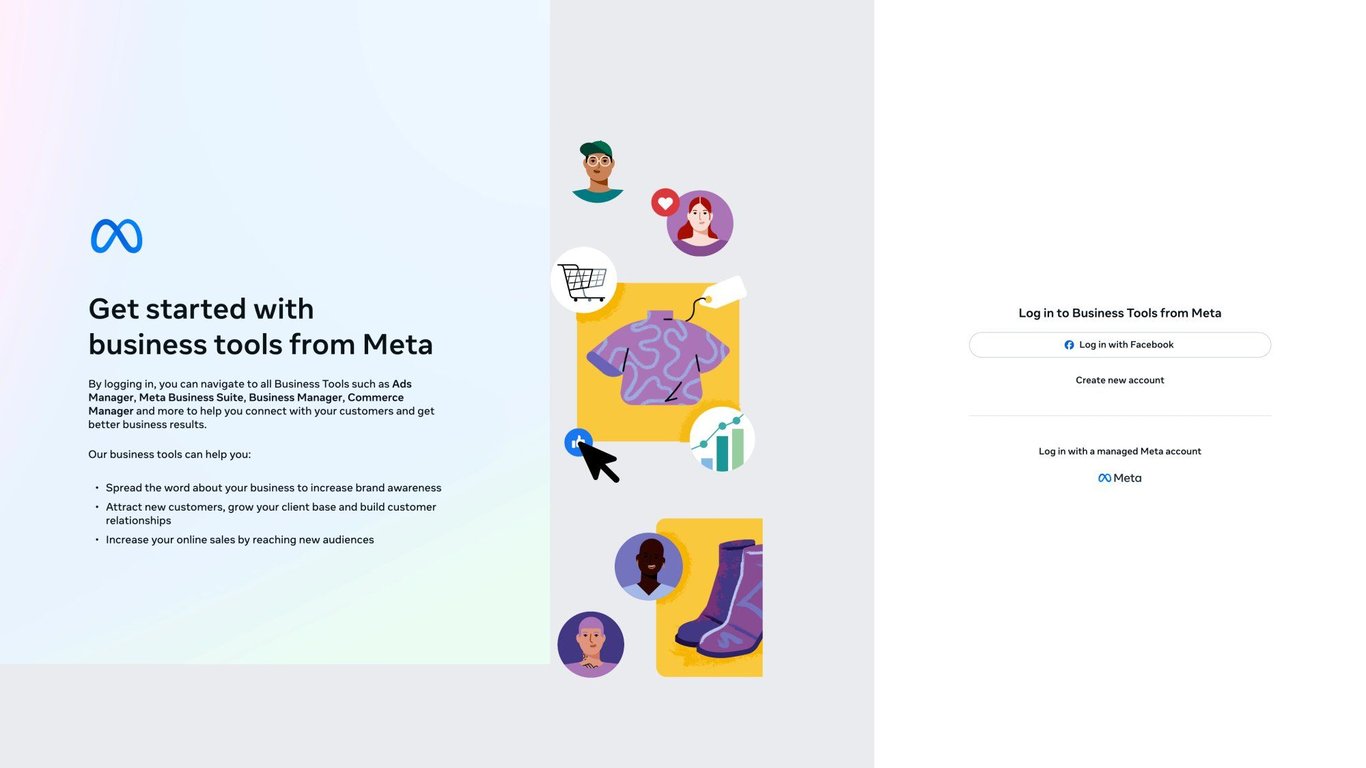

3) Meta: Meta Pixel + Conversions API

Meta's pixel is still foundational for conversion tracking, custom audiences and retargeting, and optimization.

Meta's official documentation explains that the Meta Pixel measures how effectively ads drive actions on your site.

A) Place the Base Pixel on Every Page

You can use a partner integration, use GTM, or paste the base code into your site header.

A common "works everywhere" structure:

→ Base pixel loads in <head>

→ PageView fires on load

→ Standard events fire on key actions

B) Add Standard Events (don't live on PageView)

Standard events are what make retargeting segments useful (and make optimization actually work).

Meta's standard events documentation lists the key events: PageView, ViewContent, AddToCart, InitiateCheckout, Purchase, Lead, CompleteRegistration, and more.

C) Conversions API (server-side) Is Not Optional Anymore

AdManage's own 2025 Meta campaign guide calls it out directly: browser-based tracking is incomplete post iOS privacy changes, and Conversions API improves attribution and gives Meta better data to optimize.

Meta's Conversions API documentation provides setup guidance for using pixel plus Conversions API together with the Events Manager.

D) The "Verify Domain + 8 Preferred Conversion Events" Situation

You'll see conflicting advice online because Meta has changed the surfaces over time.

AdManage's November 2025 guide still says: verify your domain and configure 8 preferred conversion events as a requirement after iOS14.

Meta's business help documentation confirms that the aggregated event measurement approach has evolved and manual configuration has been reduced or removed for many accounts.

The practical takeaway (that won't age badly): If you see a setting to verify domain or select preferred events, do it (it only helps governance). If you don't see it, don't waste a week hunting for an "AEM tab" that might not exist anymore. Focus on clean events and Conversions API.

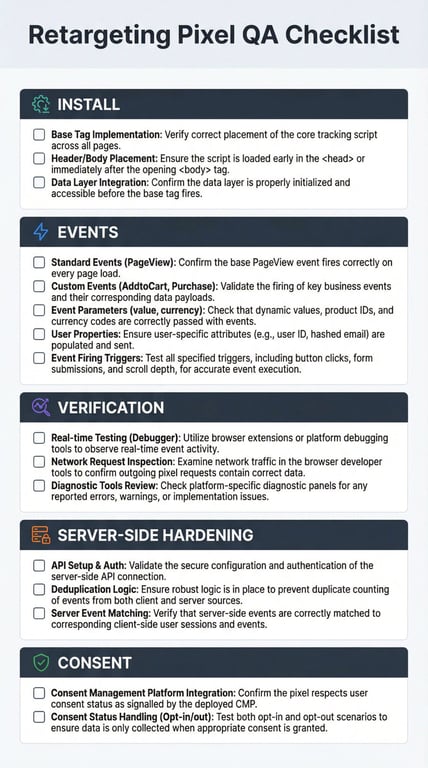

Your Retargeting Pixel Checklist

Install

Exactly one base tag per platform loads (no duplicates)

Base tag loads on all pages (including checkout domain)

Tags are placed early (head) or via GTM with an "all pages" trigger

Events

View Content fires on product/detail pages

Add to Cart fires only when cart changes

Checkout and Purchase fire only on the correct steps

Purchase includes value and currency

Ecommerce events include product identifiers (content_ids, SKU, item IDs)

TikTok explicitly recommends setting up events across the user journey and shows recommended parameters for standard events (like content IDs, currency, value).

Verification

Browser extension shows events firing (no warnings)

Platform "test events" shows events arriving in real time

Diagnostics tab has no critical errors (missing params, missing cookie, etc.)

Server-Side Hardening (recommended)

TikTok: Pixel + Events API together, with event dedup and consistent events

TikTok match keys sent where appropriate (click ID, hashed identifiers, IP/UA)

Meta: Conversions API wired and dedup working (event IDs)

Consent

Consent banner exists (don't "just fire everything" and hope)

Google consent mode wired so tags behave based on consent state

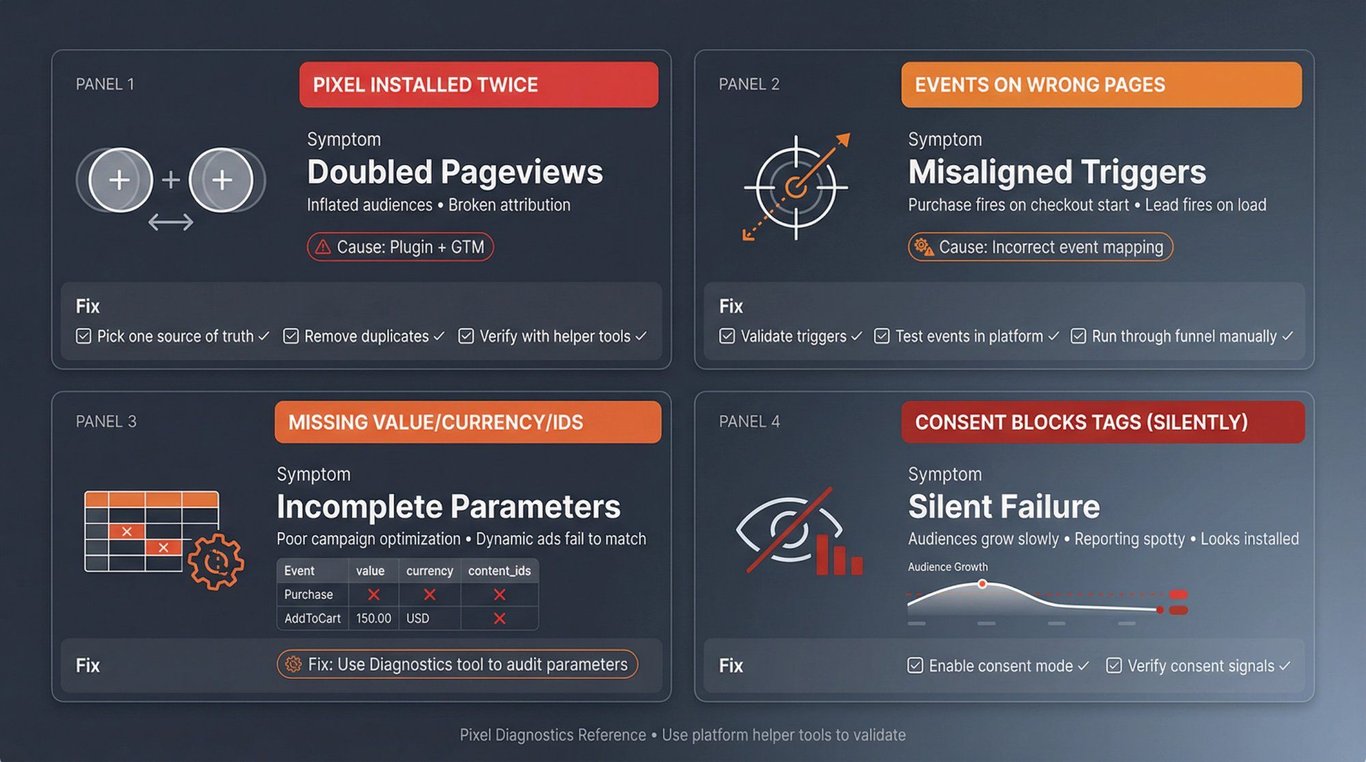

Common Pixel Failures (and How to Fix Them)

1) Pixel Installed Twice

Symptom: Doubled pageviews, inflated audiences, broken attribution.

Cause: Plugin plus GTM, or hard-coded plus GTM.

Fix: Pick one source of truth. Remove duplicates. Verify with helper tools.

2) Events Fire on the Wrong Pages

Symptom: "Purchase" fires on checkout start, or Lead fires on page load.

Fix: Validate triggers. Use platform test events and run through the funnel manually.

3) Missing Value/Currency/Content IDs

Symptom: Campaigns optimize poorly, dynamic ads can't match products, diagnostics complains.

TikTok Diagnostics exists specifically to catch missing parameter data and content ID issues.

4) Consent Blocks Tags (silently)

Symptom: Everything "looks installed," but audiences grow slowly, reporting is spotty.

Fix: Set up consent mode (Google), and ensure your consent tooling correctly signals consent states.

What to Do After Your Pixel Is Live

Quick audience stack that works almost everywhere:

Audience	Window	Purpose
All visitors	30d	Warm traffic retargeting
Product viewers	14d	Intent-based targeting
Add to cart (excl. purchase)	7d	High intent, cart abandoners
Initiate checkout (excl. purchase)	7d	Checkout abandoners
Purchasers	180d	Exclude from acquisition, upsell opportunities

Then build creatives per layer:

Visitors: "What we do + proof"

Viewers: Product-specific benefit and FAQ objections

Cart/checkout: Offer/urgency plus friction killers (shipping, returns, payment)

For advanced creative testing strategies across retargeting audiences, see AdManage's Facebook ad creative testing framework.

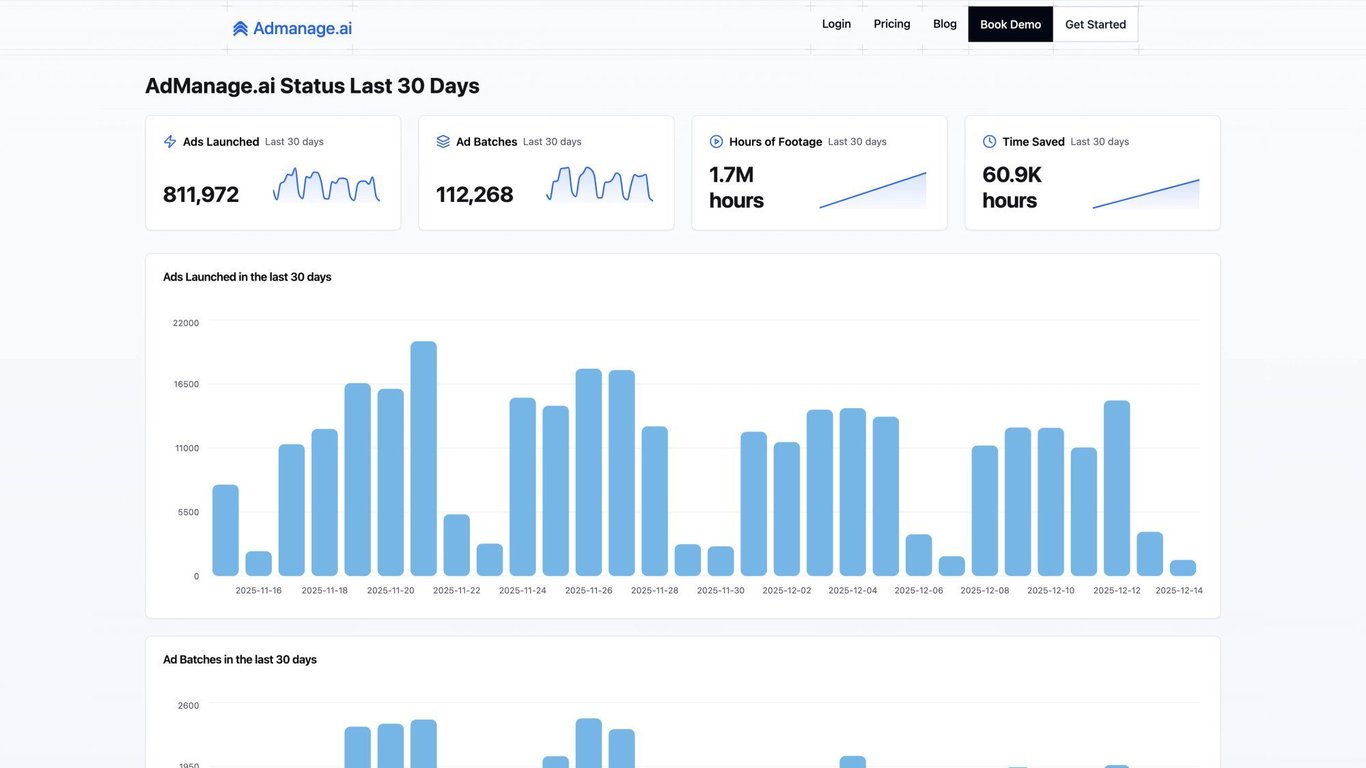

Where AdManage Fits (Once the Pixel Is Handled)

AdManage doesn't "install pixels" for you. But it helps you avoid the next failure mode: launching 200 retargeting ads with inconsistent tracking and naming.

Two practical tie-ins:

1) Use UTMs as Your Independent Tracking Layer

AdManage's UTM guide makes the point bluntly: yes, you still need UTMs even with pixel, because UTMs feed your own analytics and give you a backstop when platform tracking is incomplete.

When launching multiple ads on Facebook across different retargeting segments, Meta's ad set documentation emphasizes that consistent UTM parameters become critical for attribution analysis.

2) Scale Retargeting Creative Without Breaking Hygiene

Once your audiences/events are solid, the bottleneck becomes ad ops. AdManage exists to bulk launch variants with consistent naming conventions and UTM controls, so you can test faster without turning reporting into a dumpster fire.

The platform helps you preserve social proof when scaling Facebook ads by maintaining Post IDs as you expand retargeting campaigns across audiences.

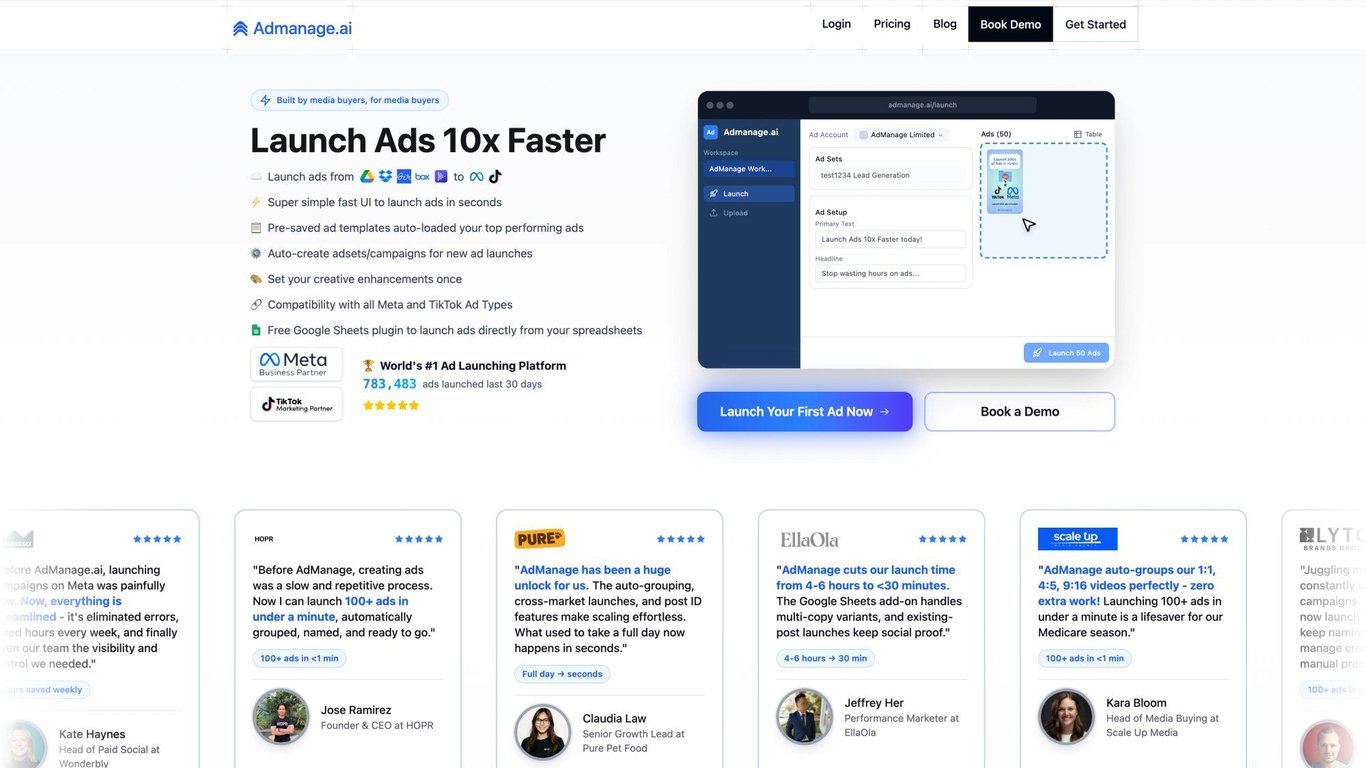

Ready to scale your retargeting? Get started with AdManage to launch hundreds of ad variations with structured naming, UTM enforcement, and Post ID preservation across Meta and TikTok.

For teams managing retargeting at scale, AdManage's bulk upload capabilities and automation features ensure every retargeting ad maintains proper tracking parameters and naming standards.

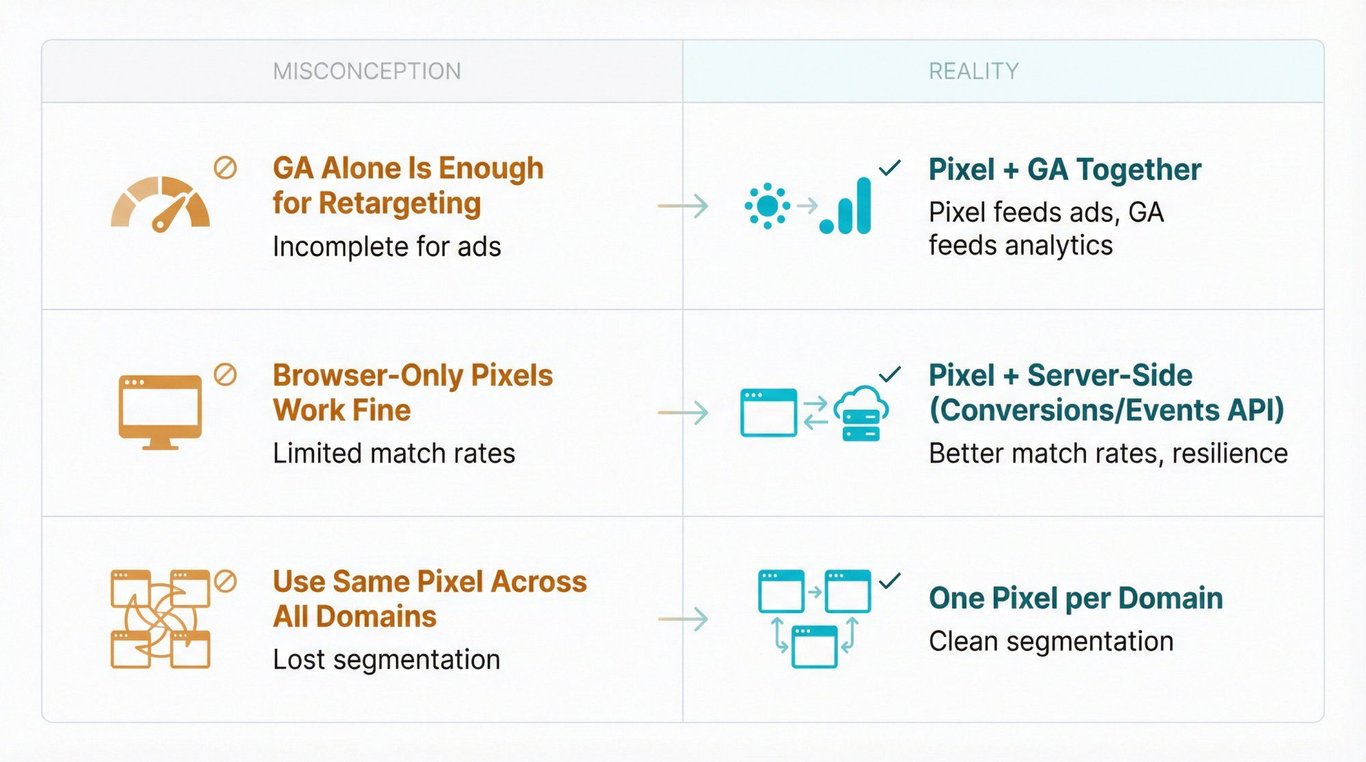

Frequently Asked Questions

Q: Do I need a pixel if I'm only using Google Analytics?

No. GA tracks site behavior but doesn't enable retargeting ads. The pixel is what feeds ad platforms (Meta, TikTok, Google Ads) the data they need to create custom audiences.

Q: Can I retarget without server-side tracking?

Yes, but your match rates will suffer. Browser-only pixels lose data from iOS blocking, ad blockers, and cookie restrictions. Server-side (Conversions API, Events API) recovers most of that loss.

Q: How long does it take for audiences to populate?

Meta's audience documentation indicates that custom audiences typically populate within 24-48 hours for the first batch of visitors. After that, updates are near real-time. Don't panic if your audience list is empty on day one.

Q: What's the difference between "pixel" and "tag"?

Same thing, different terminology. Meta calls it "Pixel." Google calls it "Tag." TikTok calls it "Pixel." They all do the same job: track events and build audiences.

Q: Can I use the same pixel across multiple domains?

Technically yes, but you'll lose segmentation control. Best practice: one pixel per domain/brand so you can filter audiences cleanly.

Q: Do I need consent for retargeting pixels in the US?

Not federally required yet (2026), but some states (California, Virginia, Colorado) have privacy laws that effectively require consent. Plus, it's good practice globally.

Q: How do I know if my pixel is still working after a site update?

Use the platform's helper extension (Meta Pixel Helper, TikTok Pixel Helper, Google Tag Assistant). Browse your site with the extension active and verify events fire correctly.

Q: What's the biggest mistake people make with pixels?

Installing it but not setting up conversion events. A pixel that only fires PageView is 20% of the value. The other 80% comes from tracking Add to Cart, Purchase, Lead, etc.

For more guidance on running successful campaigns once your pixel is configured, check out AdManage's complete guide to running successful Facebook ad campaigns.

How to Run Facebook Ads for Clients (2026 Guide) How to Find All Competitor Ad Landing Pages? (2026)

Cedric Yarish

🚀 Co-Founder @ AdManage.ai | Helping the world’s best marketers launch Meta ads 10x faster I’m Cedric Yarish, a performance marketer turned founder. At AdManage.ai, we’re building the fastest way to launch, test, and scale ads on Meta. In the last month alone, our platform helped clients launch over 250,000 ads—at scale, with precision, and without the usual bottlenecks. With 9+ years of experience and over $10M in optimized ad spend, I’ve helped brands like Photoroom, Nextdoor, Salesforce, and Google scale through creative testing and automation. Now, I’m focused on product-led growth—combining engineering and strategy to grow admanage.ai

How to Place a Retargeting Pixel: Complete Guide (2026)

What Is a Retargeting Pixel?
